• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

• Alternator, 150 amps
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• Batteries, heavy-duty dual 1100 cold-cranking amps, includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill
• Emissions, USA 50 State certified
• Exhaust system, rear exit
• Front axle, 7,000 lbs., Dana Spicer D800-N, "I"-beam, non-driving (Requires (FK6) 7,000 lb. (3,175 kg) front suspension.)
• Front suspension, 7,000 lbs. (3,175 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon, mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• GVWR, 16,500 lbs. (7484 kg) (Silverado 4500HD Requires (FTA) 7,000 lb. front axle/(FK6) suspension and (FN1) 10,000 lb. rear axle and (GR3) 11,000 lb. rear suspension or (G40) 12,000 lb. rear air suspension, or (FTA) 7,000 lb. front axle/(FK6) suspension and (FU7) 15,500 lb. rear suspension or (GP8) 15,500 lb. rear air suspension and (HD1) 15,000 lb. rear axle, or (FTA) 7,000 lb. front axle/(FK6) suspension and (G40) 12,000 lb. rear air suspension or (GP1) 13,500 lb. rear air suspension or (GR3) 11,000 lb. rear suspension or (GR4) 13,500 lb. rear suspension and (GL4) 11,000 lb. rear axle. Not available with rear air suspension when ordered with (FQT) 141" wheelbase.)
• Incomplete vehicle
• Rear axle, 10,000 lb. (4,536 kg) Dana Spicer S14-110, single reduction
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
• Rear wheel drive
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 175" (444.5 cm), 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (G40) 12,000lbs., (GP1) 13,500 lbs. or (GP8) 15,500 lbs. rear air suspension.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AK5) frontal, driver and right front passenger airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

FRONT SUSPENSION, 7,000 LBS. (3,175 KG) MULTI-LEAF, INCLUDES SHOCK ABSORBERS

• (STD)

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb-ft torque @ 1600 rpm (STD)

TIRES, REAR 225/70R19.5G TRACTION BLACKWALL CONTINENTAL

• Max Axle Load: 15
• 000 lbs.

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

ELECTRICAL PROVISIONS, REAR OF CAB, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1700RDS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Rugged Duty Series
• 19.5K GVW & 26K GCW Max.

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

UPFITTER SWITCHES

• provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel

AIR CONDITIONING, SINGLE-ZONE

• (STD)

GRILLE GUARD SCREEN, STONE PROTECTION

• (mounted to bumper)

• FRONT STABILIZER BAR
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 7 940 lbs.
• ASSIST STEPS ALUMINUM
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
• GRILLE CHROME
• TIRES REAR 225/70R19.5G TRACTION BLACKWALL CONTINENTAL Max Axle Load: 15 000 lbs.
• ENGINE BLOCK HEATER
• BUMPER FRONT CHROME
• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.
• FRONT SUSPENSION 7 000 LBS. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS (STD)
• ELECTRICAL PROVISIONS REAR OF CAB UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• LICENSE PLATE KIT FRONT
• GVWR 19 500 LBS. (8845 KG)
• ENGINE BLOCK HEATER PROCESSING CODE
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• WHEELS 19.5" X 6.75" ALUMINUM 8-HOLES HUB PILOTED
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series 19.5K GVW & 26K GCW Max.
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• WHEELBASE 199" (505.5 CM) 84" CA
• REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO
• POWER TAKE OFF ENGINE CONTROL PROVISIONS
• SPARE TIRE DELETE (STD)
• REAR AXLE 13 500 LB. (6 124 KG) DANA SPICER S14-110 SINGLE REDUCTION
• RED HOT
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• FRONT AXLE 7 000 LBS. DANA SPICER D800-N "I"-BEAM NON-DRIVING
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• PAINT SOLID
• SHOCK ABSORBERS REAR
• AIR COMPRESSOR ACCESSORY DRIVE
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• ADDITIONAL FUEL 5 GALLONS
• UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• AIR CONDITIONING SINGLE-ZONE (STD)
• GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
• EXHAUST BRAKE
• FUEL TANK FRONT 25 GALLON
• REAR SUSPENSION 15 500 LBS. (7 031 KG) MULTI-LEAF VARI-RATE
• 26 000 LBS. GCWR (11 793 KG)
• Turbocharged
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Power Steering
• ABS
• Running Boards/Side Steps
• Power Windows
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• A/C
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag On/Off Switch

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Exterior Dimensions
• Body Length Default Value (ft): 8
• Cab to Axle (in): 84.09
• Cab to End of Frame (in): 133.3
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 149.48
• Ground to Top of Load Floor (in): 29.4 front/32.1 rear
• Height, Overall (in): 88.0
• Length, Overall (in): 282.8
• Overhang, Front (in): 34.3
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 199
• Width, Max w/o mirrors (in): 84
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25
• Fuel Tank Location: Front
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.51
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Wall to Wall (ft): 57.3
• Summary
• Body Style: Crew Cab Chassis Cab

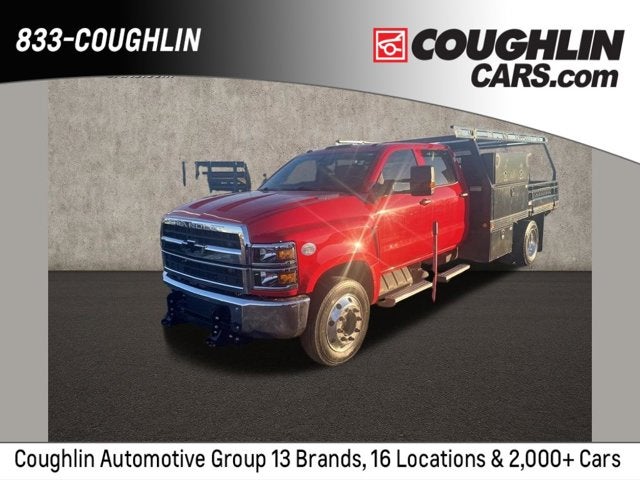

• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13500
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-reduction
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 49
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 15500
• Stabilizer Bar Diameter - Front (in): 1.26
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDL
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAN
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 5178
• Curb Weight - Rear (lbs): 3187
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 13500
• Gross Combined Wt Rating (lbs): 26000
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 hole JIS 10.83"
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 hole JIS 10.83"
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 19.5 x 6.75
